Accurate Air Content Measurement for Packaged Beverages
The Haffmans IAM is a reliable instrument used to determine the air content in the headspace and the total air content in carbonated beverages. It works in combination with the Inpack CO₂ Calculator or Inpack CO₂ Meter, using a proven method based on CO₂ absorption by caustic.
Benefits
- Precise quality control: Accurately measures headspace and total air content.
- Maintenance-free: Simple, durable design with no moving parts.
- Cost-effective: Reduces the risk of oxygen-related flavor degradation and shelf-life issues.
- Flexible options: Available in two models for different beverage types.
-
FUNCTIONAL DESCRIPTION
-
The container is depressurized, and the released gas is fed into the IAM. CO₂ is absorbed by caustic, and the remaining air is collected in a measuring burette. The air volume is then read directly in milliliters.

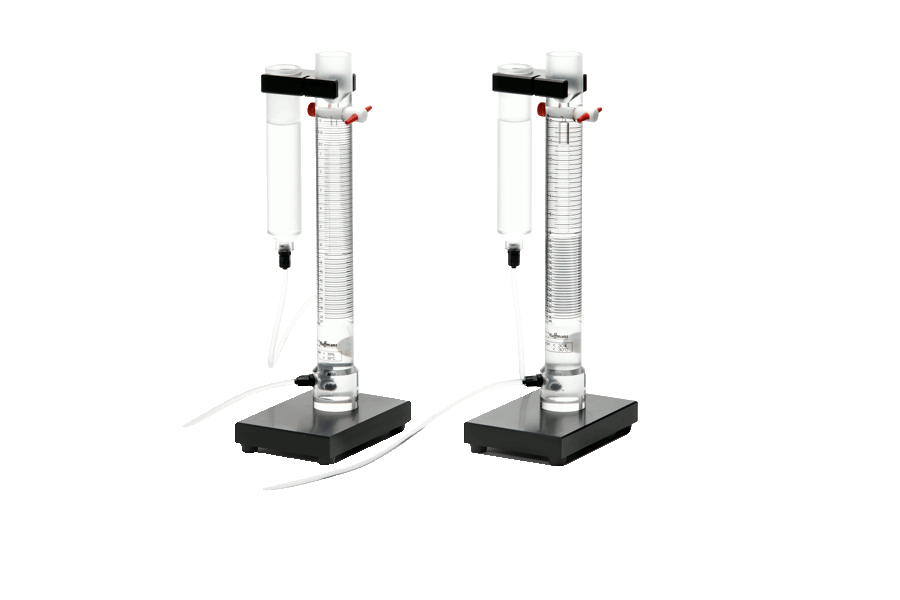

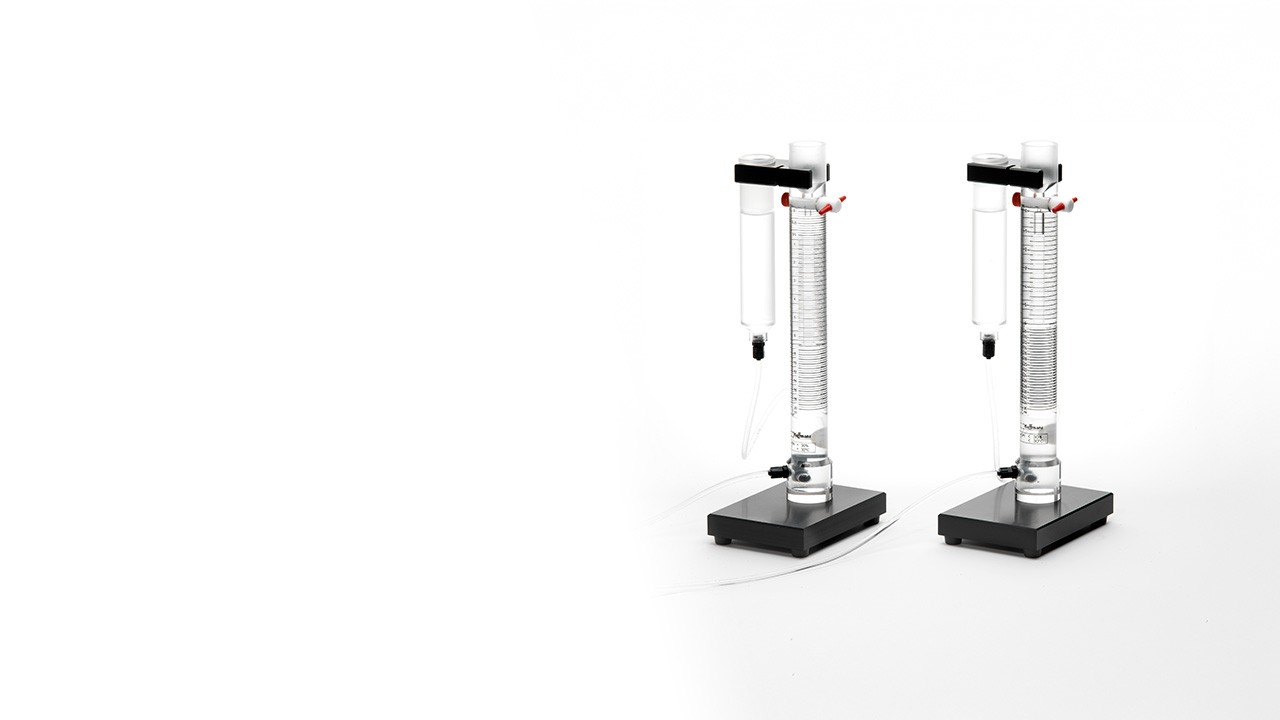

The device is available in two executions:
- Type IAM-20 has a measuring range of 0-20 ml, with higher accuracy in the low range, and is typically used for carbonated beverages with low air content, such as beer.
- Type IAM-36 measures the range of 0-36 ml and is typically used for carbonated beverages with a higher air content, such as soft drinks.
- Type IAM-20 has a measuring range of 0-20 ml, with higher accuracy in the low range, and is typically used for carbonated beverages with low air content, such as beer.
-
FIELDS OF APPLICATION
-
- Laboratory: Use in combination with Pentair Haffmans’ Inpack 2000 CO₂ Calculator or Meter.
- Breweries and soft drink production.
Downloads
| Title | Download PDF | |
| Product Leaflet | Haffmans IAM | Download |
| Product Leaflet | Haffmans IAM (French) | Download |
| Product Leaflet | Haffmans IAM (Portuguese) | Download |
| Product Leaflet | Haffmans IAM (Spanish) | Download |
| Product Overview Brochure |
Haffmans Quality Control Equipment |
Download |
| Technical documentation | Request Product-Specific Technical Documentation | Send Us Your Request |
