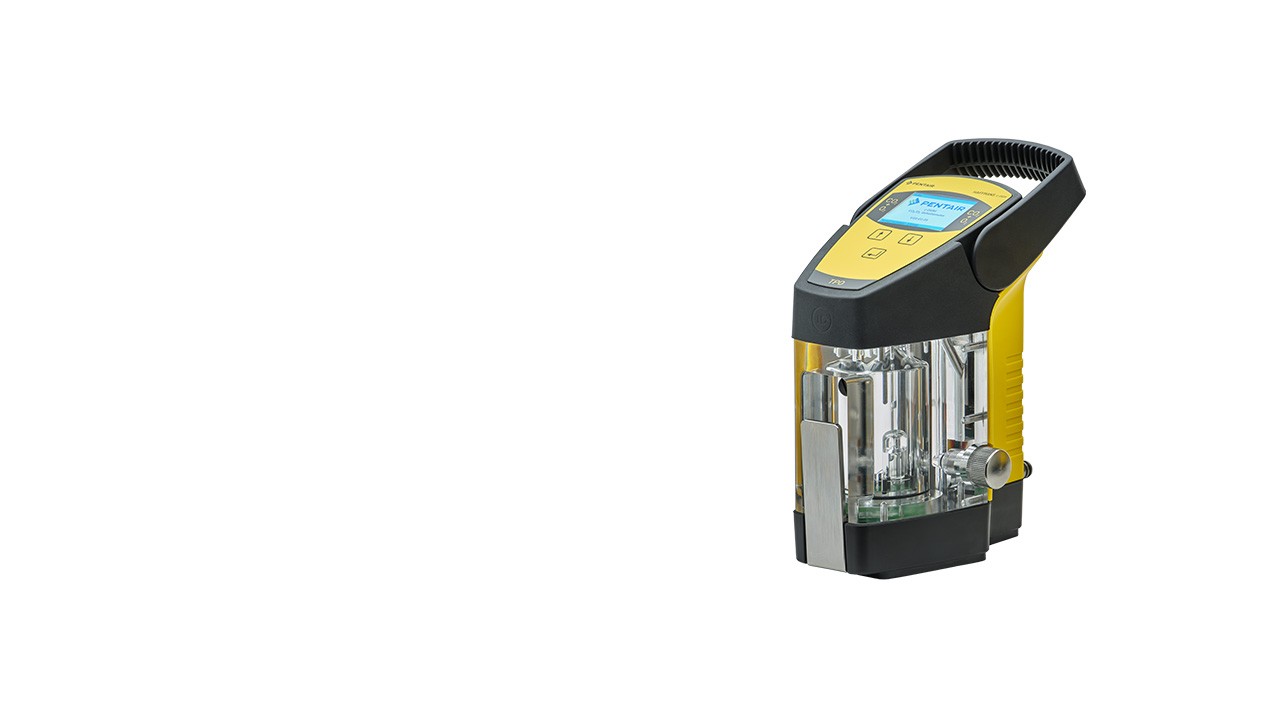

Portable Optical CO2/O2 Gehaltemeter

The Pentair Haffmans Portable Optical CO2 /O2  Gehaltemeter, type c-DGM is an accurate CO, O and TPO quality control device.

Portable and Versatile Measurement

The Pentair Haffmans Portable Optical CO/O/TPO Gehaltemeter, type c-DGM is your reliable measurement device for the dissolved CO content, DO content, O content in gases, and the TPO in a beverage package.

Portable Optical CO2/O2 Gehaltemeter

Benefits

  • Reproducible results ensure accuracy and peace of mind.
  • Versatile device capable of measuring multiple parameters.
  • Durable design makes it suitable for both the brewing and soft drink industries due to its ability to handle high product pressure.
  • Functional Description

    When CO measurement is started, the O content is stored. Automatically, equilibrium is created, followed by the measurement of pressure and temperature. The dissolved CO content is then electronically calculated and displayed. The data can be securely transferred to a PC using the interface cable.

    Besides the combined CO/O measurement, the c-DGM is suitable for single O, continuous O and single CO measurements.

    Also, the Total Package Oxygen (TPO) value, based on the Uhlig method, is calculated in the CO/ TPO measuring mode and the single TPO measurement.

    Fields of application


    The Pentair Haffmans CO/O Gehaltemeter, type c-DGM allows you to perform:

    • Combined CO/O measurement.
    • Single CO measurement.
    • Continuous O measurement.
    • Single O measurement.
    • Combined CO/TPO measurement.
    • Single TPO measurement.

    Can be used for either at-line measurement and within a laboratory:

    • Perform a measurement from the production process (directly from process lines, vessels, tanks, or kegs).
    • Measure quality parameters in the laboratory by sampling from a variety of bottles or cans using this device.

    downloads

    Title

    Product leaflet
    Haffmans Portable CO2 /O2 /TPO Meter c-DGM
    Product leaflet
    Haffmans Portable CO2 /O2 /TPO Meter c-DGM (German)
    Product leaflet
    Haffmans Portable CO2 /O2 /TPO Meter c-DGM (French)
    Product leaflet
    Haffmans Portable CO2 /O2 /TPO Meter c-DGM (Portuguese)
    Product leaflet
    Haffmans Portable CO2 /O2 /TPO Meter c-DGM (Spanish)
    Product leaflet
    Haffmans Portable CO2 /O2 /TPO Meter c-DGM (Russian)
    Product Overview Brochure
    Haffmans Quality Control Equipment
    Case study
    Stiegl Brewery (Austria)
    Case study
    Stiegl Brewery (Austria) (German)
    Case study
    Boxing Cat Brewery (China - Craft Brewing)
    Case study
    Florida Beer Company (USA - Craft Brewing)
    Case study
    Summit Brewing Company (USA - Craft Brewing)
    Case study
    Cahaba Brewing Company (USA - C-DGM/ISD Special)
    Technical documentation
    Looking for operating instructions, installation manual, spare part list etc.?

    Download PDF

    Product leaflet
    Portable CO2/O2/TPO Meter - c-DGM | Haffmans - leaflet
    Product leaflet
    Portable CO2/O2/TPO Meter - c-DGM | Haffmans - leaflet (German)
    Product leaflet
    Portable CO2/O2/TPO Meter - c-DGM | Haffmans - leaflet (French)
    Product leaflet
    Portable CO2/O2/TPO Meter - c-DGM | Haffmans - leaflet (Portuguese)
    Product leaflet
    Portable CO2/O2/TPO Meter - c-DGM | Haffmans - leaflet (Spanish)
    Product leaflet
    Portable CO2/O2/TPO Meter - c-DGM | Haffmans - leaflet (Russian)
    Product Overview Brochure
     Quality Control Equipment | Haffmans - Product overview brochure
    Case study
    Portable CO2/O2/TPO Measurement - c-DGM for Stiegl Brewery | Haffmans - Case study
    Case study
    Portable CO2/O2/TPO Measurement - c-DGM for Stiegl Brewery | Haffmans - Case study (German)
    Case study
    CO2/O2/TPO Measurement - c-DGM for Boxing Cat Brewery - Craft Brewing | Haffmans - Case study
    Case study
    CO2/O2/TPO Measurement - c-DGM for Florida Beer Company - Craft Brewing | Haffmans - Case study
    Case study
    Craft Brewing Technology - Summit Brewing Company | Pentair - Case study
    Case study
    CO2/02/TPO Measurement - c-DGM / ISD Special for Cahaba Brewing | Haffmans - Case study
    Technical documentation
    Please, send us your request

    Featured cases

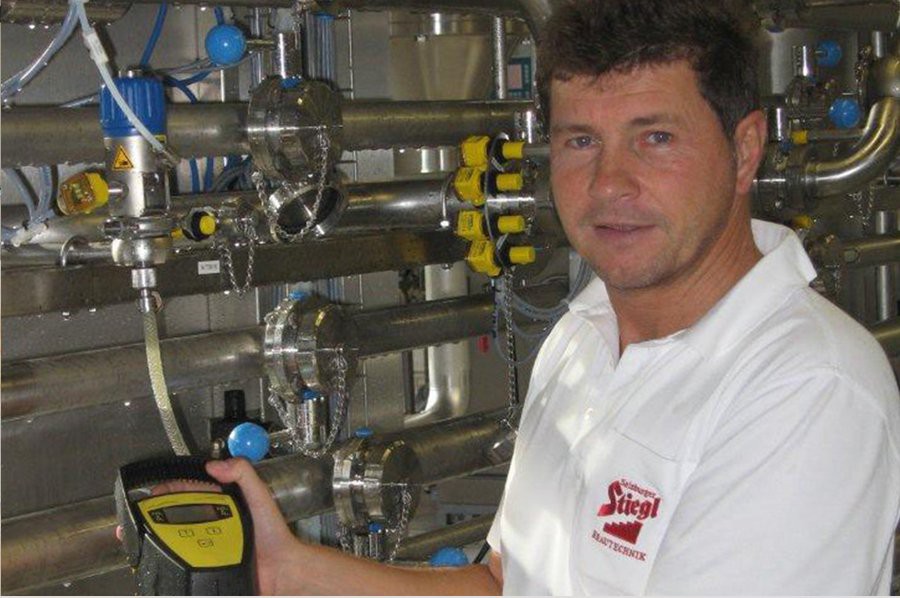

    CO2-O2 Portable measurement device for Stiegl brewery - Image 0
