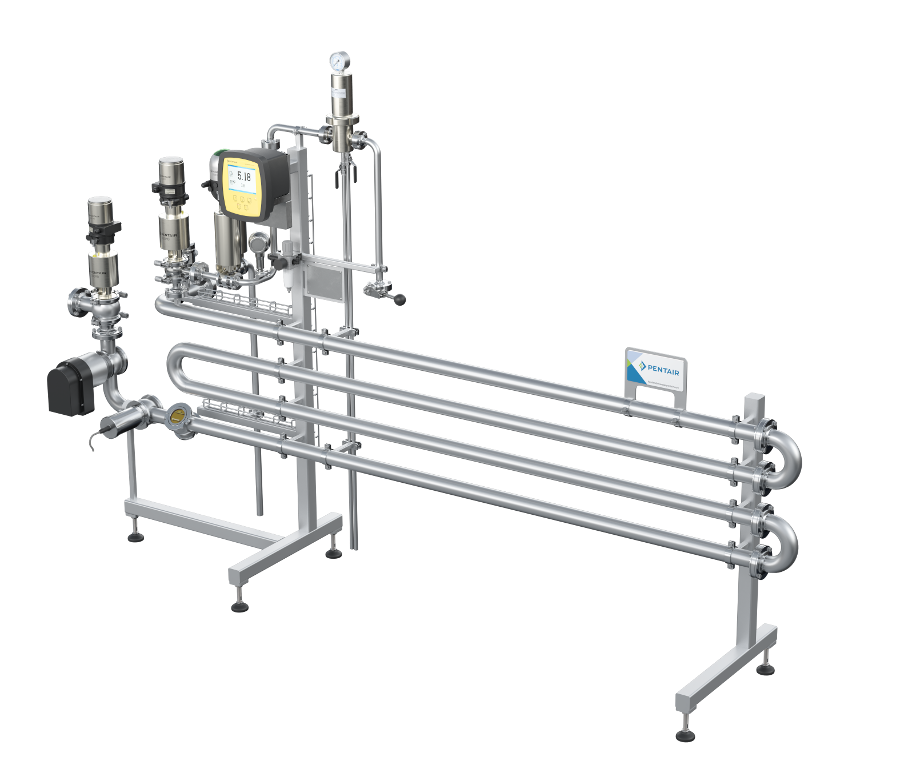

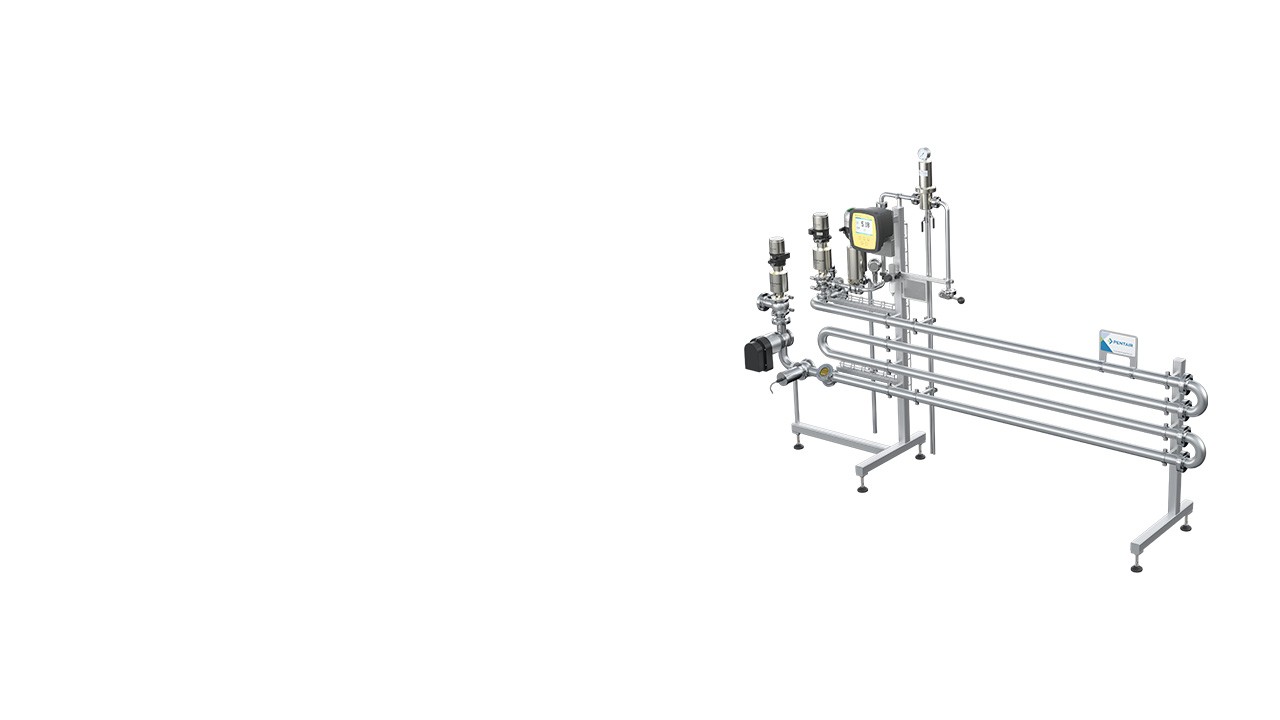

Carbo Controller - CCR - Pentair - image 1 triangle-overlay

PENTAIR

Carbonation Control System

The Pentair Carbonation Control System - Carbo Controller - CCR is available as a skid mounted module. It consists of proven components, and includes all required piping, wiring and control systems. The hygienic, fully automated and reliable design guarantees easy handling, low maintenance and a long service life. The quality and reliability of the Carbo Controller is backed by many references around the world.

Multimedia

Benefits

  •  Perfect process and product control
    - high measuring and control accuracy
    - hygienic design
    - bubble-free CO2 dissolution

  •  Cost saving
    - no product loss
    - integrated dosing control (embedded software)

Functional Description

The Carbo Controller works by injecting CO2 at the inlet of a dissolution tube. The CO2 is then finely dispersed and dissolved by a set of static mixers, that are engineered to suit your specific process conditions.

The In-line  O2 Gehaltemeter, type AuCoMet-i (or In-line CO2/O2 Gehaltemeter for combined measurement) determines the amount of CO2 and can immediately adjust the CO2 dosing rate if necessary. The COanalyzer communicates directly with Pentair’s CO2 dosing block through embedded software, or via PLC control. Besides being used to control the carbonization process, the CO2 content, and optionally the O2 content, are also available for monitoring the product quality.

The Carbo Controller is available as either a skid mounted system. It consists of proven components, and includes all required piping, wiring and control systems.

Fields of application

Industry developments regarding high gravity brewing, production of non-alcoholic beers, soft drinks, new functional drinks and control of shelf life, have all resulted in a growing demand for carbon dioxide (CO2) and oxygen (O2) control. Pentair's extensive experience and references in CO2 measurement and dosing guarantee accurate CO2 injection and bubble-free CO2 dissolution. Combined with the reliable O2 measurement, this enables you to achieve total process control. Automated and accurate carbonization of beverages.

downloads

Title

Product leaflet
Pentair Carbonation Control System - Carbo Controller - CCR
Case Study
Bryggeriet Vestfyen
Case Study
Crown Beers
Case Study
Founders
Case Study
Summit Brewing
Case Study
Trillium
Technical documentation
Looking for operating instructions, installation manual, spare part list etc.?

Download PDF

Product leaflet
Carbonation Control System - Carbo Controller - CCR | Pentair - leaflet
Case Study
Carbo Controller CCR - Bryggeriet Bestfyen | Pentair - Case Study
Case Study
Carbo Controller CCR - Crown Beers | Pentair - Case Study
Case Study
Carbo Controller CCR - Founders | Pentair - Case Study
Case Study
Carbo Controller CCR - Summit Brewing | Pentair - Case Study
Case Study
Carbo Controller CCR - Trillium | Pentair - Case Study
Technical documentation
Please, send us your request

FEATURED CASES

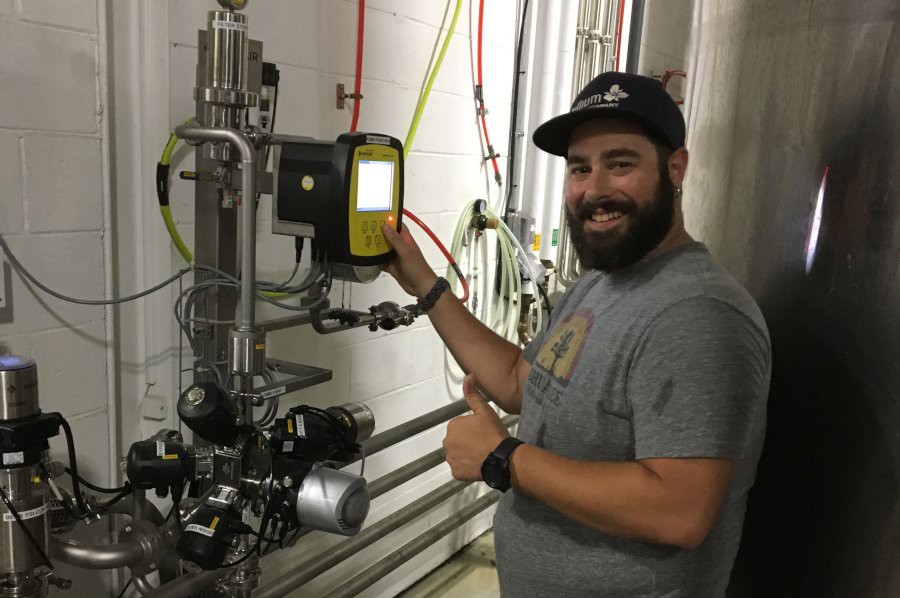

Accurate and consistent carbonating with Haffmans Carbo Controller CCR - Founders craft brewery - Image 0

Founders Brewing Co. - USA

A great carbonating solution

Mix proof valves for Summit brewery - Image 1

SUMMIT BREWING COMPANY - MINNESOTA, USA

THE BEAUTY OF BREWING

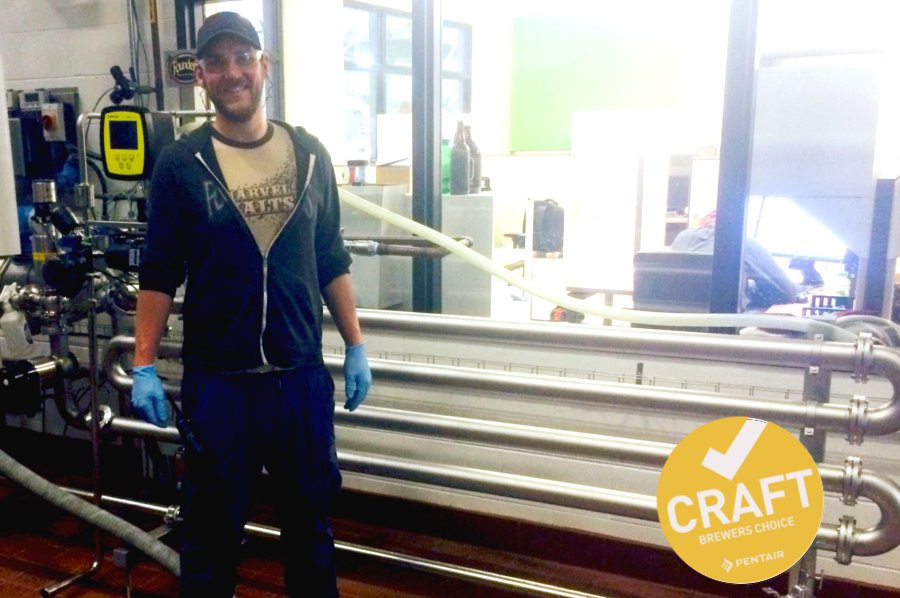

Carbonation - Trillium Brewery - image 1
