Liquid CO2 Storage Tanks
The Pentair Liquid CO2 Storage Tanks are designed to provide dry liquid CO2 storage capacity on site. They act as a buffer when CO2 consumption is lower than the liquid CO2 supply rate.
GET IN TOUCH WITH OUR SPECIALISTS

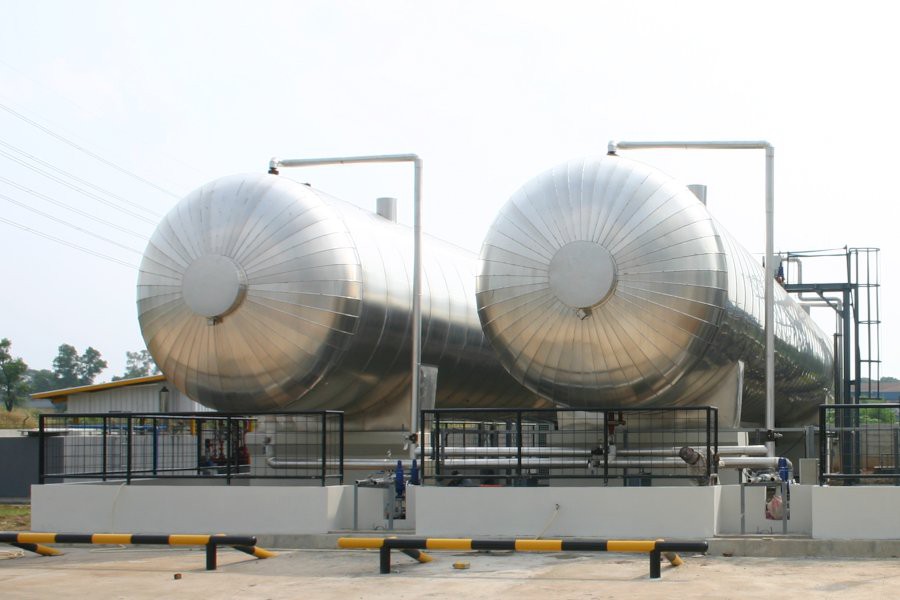

Bulk storage of liquid CO2
Pentair can provide three type of insulation for our CO2 storage tanks:
- Pre-insulated prior to shipment with the following insulation:
-120 mm polyurethane (150 mm for 110 m3 )
-1 mm aluminum cladding - Pre-fabricated insulation materials delivered separately for installation on site:
- 150 mm polystyrene
- vapor barrier
- 20 mm mineral wool
- 1 mm aluminum cladding - Vacuum insulated cryogenic (only available as vertical design):
- Insulation: Fine grain perlite + vacuum
- Vacuum value: min. 5 x 10-2 mbar(a)
Design pressure: 20 bar(g) (25 bar(g) for vacuum insulated type)
Connections for:
- CO2 plant, liquid and gas
- Truck filling station
- Cylinder filling station
- CO2 evaporator
- Blow-off and drain
Technical Data
Design temperature: -40/+40 °C
Seismic zone: UBC 2 (other zones available on request)
Design code: PED 97/23/EC (other approvals available on request)
Seismic zone: UBC 2 (other zones available on request)
Design code: PED 97/23/EC (other approvals available on request)
SCOPE OF SUPPLY
- Liquid level indicator (differential pressure type) with safety switch against overfilling
- Load cells (option, for horizontal tanks)
- Double-mounted safety relief valve with change-over valve
- Necessary valves and fittings
- Manhole for inspection
Fields of Application
Pentair Haffmans Liquid CO2 Storage Tanks operate successfully in many parts of the world in industries where liquid CO2 is stored and im/exported such as:
- Brewing
- Wine
- Cider
- Bioethanol
- Distilling
- Natural water well / spring
- Biogas upgrading : biomethane to grid
- Gas companies
It is integrated into a CO2 recovery process down stream of the CO2 Liquefaction system or operates stand-alone.
Whether the site situation requires a complete new plant, a replacement, a retrofit or expansion, Pentair Haffmans provides a suitable CO2 storage solution.
