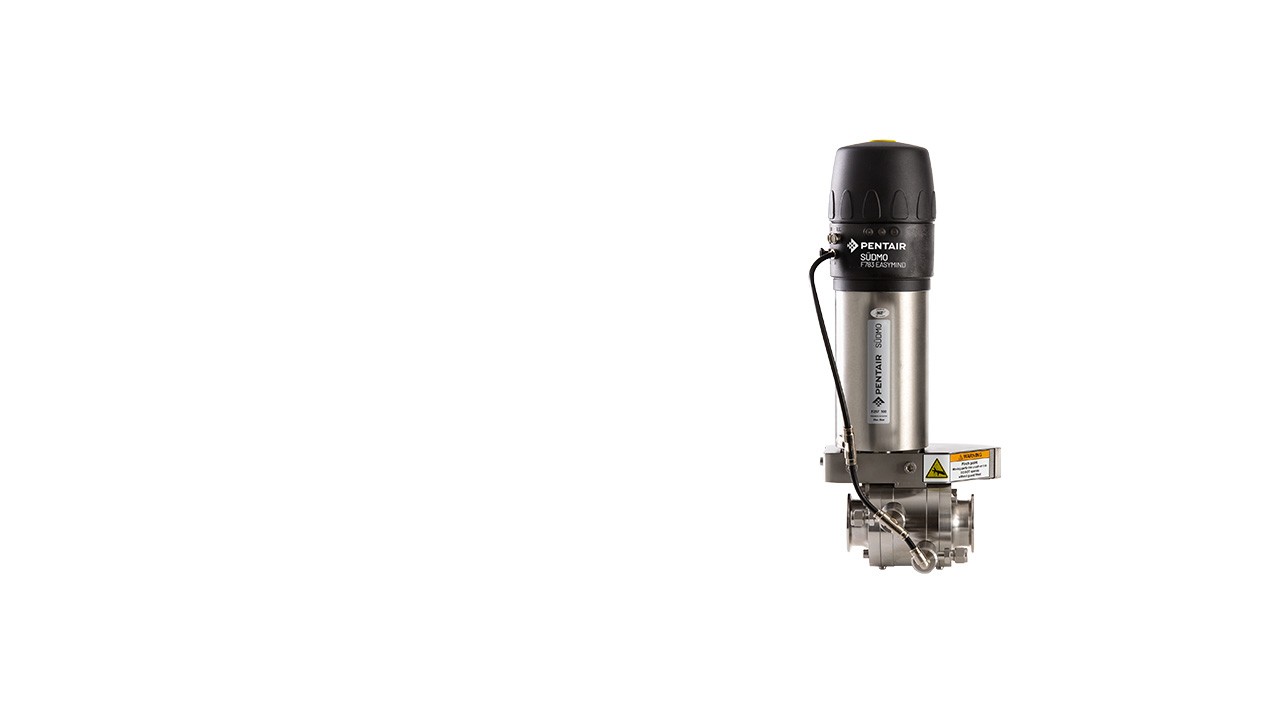

PRODUCT INFORMATION
Südmo hygienic Double Block and Bleed Butterfly Valves F250D/F251D provide safe separation of incompatible fluids in a compact design. By integrating two butterfly discs and independent vent/drain valves into a common housing, this leakage detection butterfly valve completely isolates the self-draining leakage chamber with a single valve housing and actuator.
Benefits
- Full range of seats materials available
- Optional end connections
- Full range of optional accessories
- Linkage driven, with only one actuator required
- Linkage safety guard fitted as standard
FEATURES
- Failsafe pneumatic interlocks
- Fully machined 316L or 304L stainless steel body
- Overlapping discs to minimize leakage cavity volume on larger sizes
- Travel limited actuator to stop disc contact on larger sizes
-
FUNCTIONAL DESCRIPTION
-
Südmo hygienic Double Block and Bleed Butterfly Valves consists of two sets of standard F250 butterfly valve components arranged in series, within a single integral valve body, to provide an inline separation cavity when both valves are in the closed position. This inline separation of products is used to isolate non-compatible fluids (i.e. CIP/product.) The separation cavity has two pneumatically interlocked poppet valves, tangentially opposed to provide for the introduction and draining of CIP or flushing liquids. Their position provides for a turbulent circular washing action plus facilitates a drain to atmosphere should either of the separate valve seats fail. The valves twin discs are connected by a linkage arrangement to the pneumatic actuator that simultaneously operates the pneumatic poppet valves.
-
FIELDS OF APPLICATION
-
The unique design of Südmo Double Block and Bleed Butterfly Valve predestines it for isolation and safe separation of incompatible fluids, in the food, dairy, brewing, pharmaceutical and beverage industries.
