Product Information
Südmo Stainless Steel Ball Valves F262 are used in many applications of dairy, brewery, winery, food and beverage industries. Our comprehensive valve line features both manual and pneumatic drives and a variety of options that allow monitoring and control through a PLC control system.
BENEFITS
- Field replaceable seats and seals
- Adjustable gland when actuator is fitted
- Full range of accessories
- High quality precision engineered for long life and low maintenance
- Very high cycling capability.
FEATURES
- Quarter turn operation
- Full bore
- Exterior and interior surfaces are machined to hygienic standards
- Bubble tight shut-off for reliability
- A range of end connections including BSM/RJT and IDF
- Two piece construction
- Precision 316 S/S ball and stem as standard
- PTFE seats and seals as standard
-
FUNCTIONAL DESCRIPTION
-

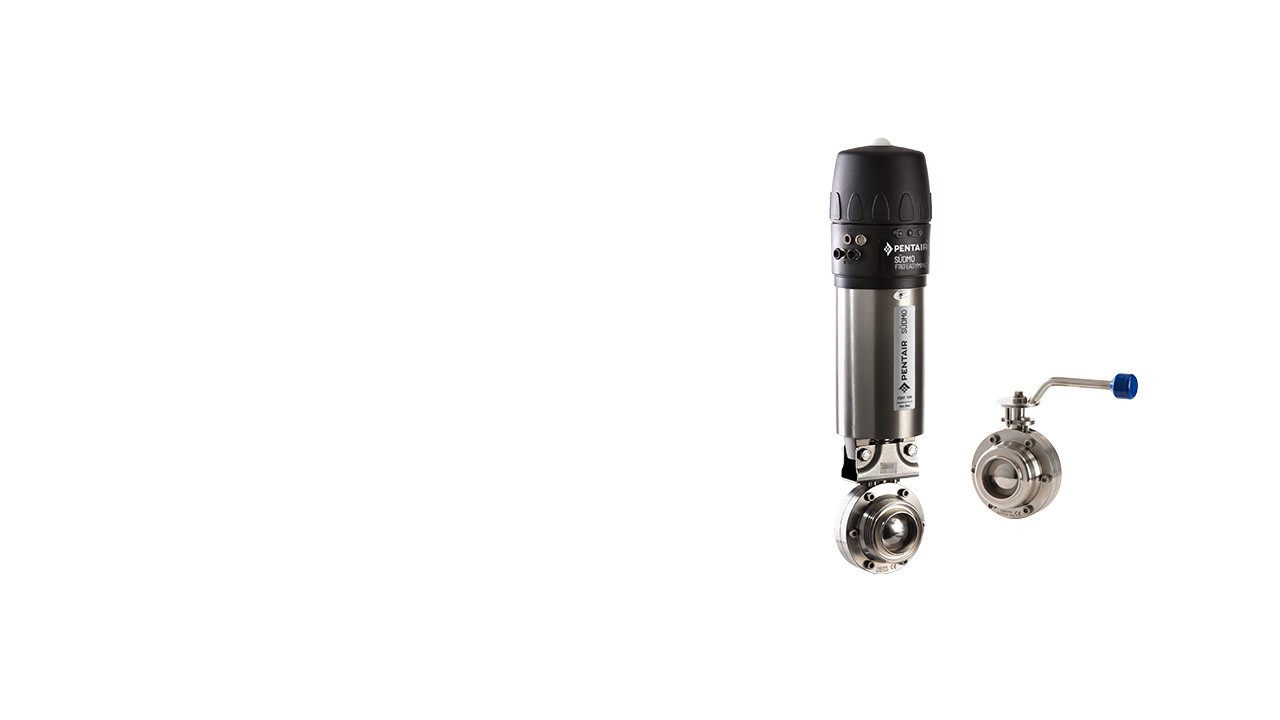

Südmo Stainless Steel Ball Valves can be operated either by a manual handle or remotely controlled by an automated pneumatic actuator. The manual version comes standard with a dual position handle notch plate. The automated version valve can be supplied in three configurations, Spring to Close (STC), Spring to Open (STO) or Double acting (DA)
-
FIELDS OF APPLICATION
-
An universal stainless steel ball valve for isolation and control of chemical and other process fluids in the food, dairy, brewing, pharmaceutical and beverage industries. Our ball valves are designed to be easily automated with the Pentair Vertical SS Actuator, combined with the Easymind Electronic Control Top. Other automation options can also be made with other Pentair rack and pinion actuators upon special request.
DOWNLOADS
| Title | Download PDF | |
| Product leaflet | Südmo Stainless Steel Ball Valves F262 | Download |
| Instructions | Südmo Stainless Steel Ball Valves F262 - Seat and Seal Replacement | Download |
| Catalog | Südmo Hygienic Components | Contact Us |
