Accurate Dew Point Measurement for CO₂ and Other Gases

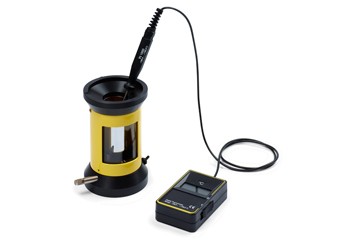

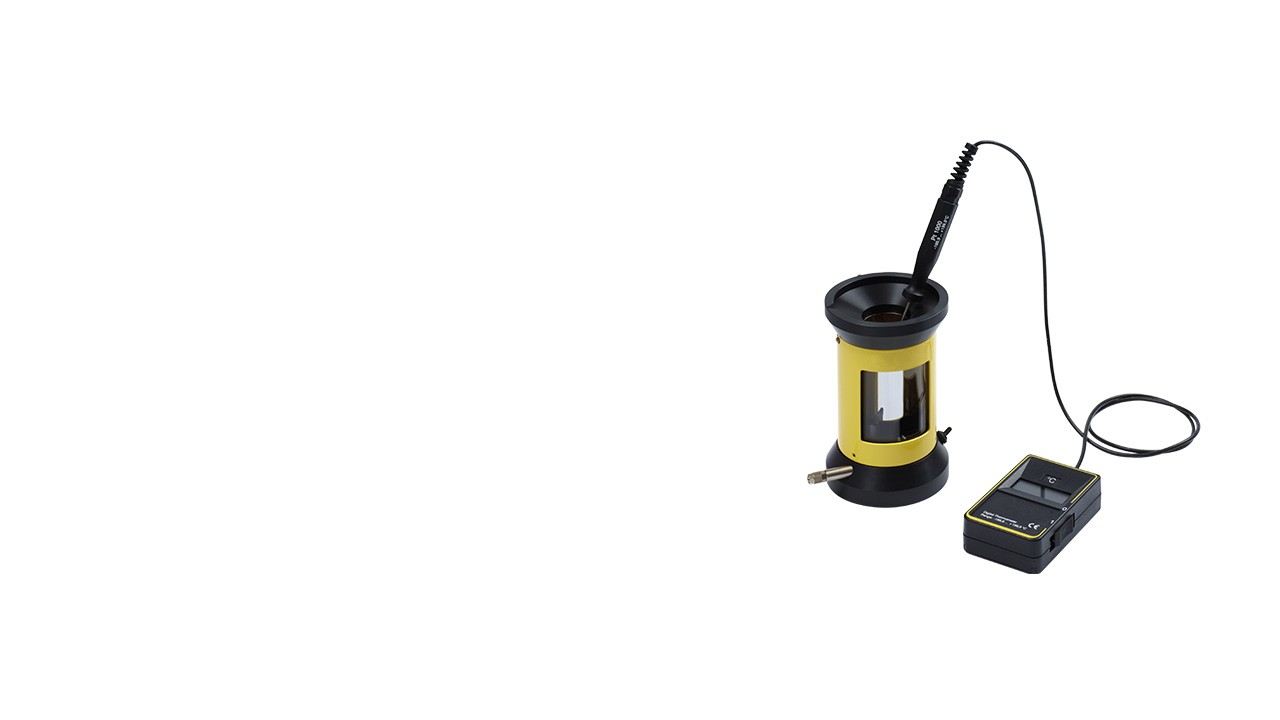

The Haffmans DPT is a reliable, at-line instrument that accurately measures the condensation temperature (dew point) of humidity in CO₂ or other gases. This is essential for ensuring gas quality and preventing operational issues in CO₂ recovery and liquefaction systems.
In beverage production, especially brewing, CO₂ is often recovered from fermentation. Before liquefaction, it must be free of moisture to avoid ice formation, which can cause plant shutdowns. The DPT helps ensure gas dryness to protect your process and product quality.
Benefits
- Precise control: Accurately detects dew point to ensure gas quality
- Cost savings: Helps avoid costly downtime due to ice blockages
- Simple operation: Uses acetone and dry ice for cooling, with a temperature probe for accurate readings
- Versatile: Suitable for CO₂ and other industrial gases
-
FUNCTIONAL DESCRIPTION
-
The Haffmans DPT is flushed with gas at a low flow rate. The measurement cup is filled with acetone, cooled with dry ice, and stirred using a temperature probe. The dew point is determined by observing the temperature at which condensation appears.
-
FIELDS OF APPLICATION
-
- CO2 Recovery systems
- CO2 Recovery systems
DOWNLOADS
| TITLE | DOWNLOAD PDF | |
| Product Leaflet | Haffmans Dewpoint Tester - DPT | Download |
| Product Leaflet | Haffmans Dewpoint Tester - DPT (French) | Download |
| Product Leaflet | Haffmans Dewpoint Tester - DPT (Portuguese) | Download |
| Product Leaflet | Haffmans Dewpoint Tester - DPT (Spanish) | Download |
| Product Overview Brochure | Haffmans Quality Control Equipment | Download |
| Technical Documentation | Request Product-Specific Technical Documentation | Send Us Your Request |
