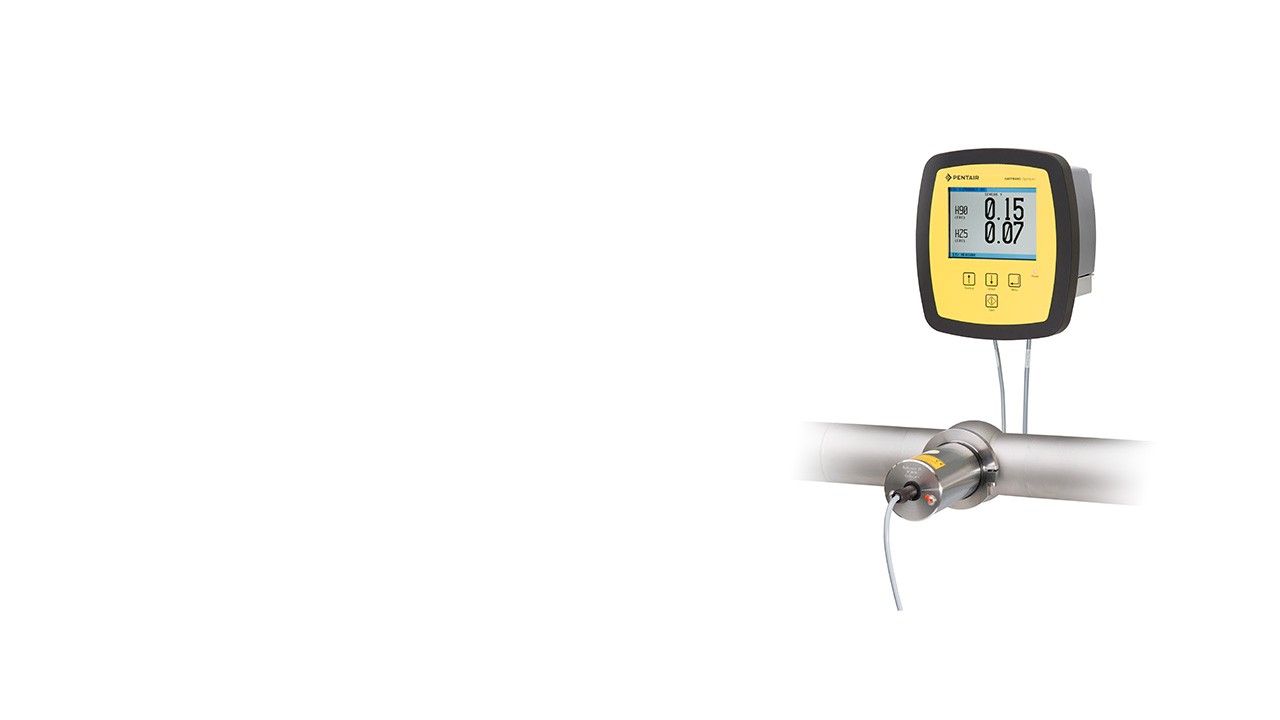

In-line Turbidity Meter - Opthaze-i - Haffmans - image 1 triangle-overlay

HAFFMANS

In-line Turbidity Meter

The Haffmans In-line Turbidity Meter - OptHaze-i can be installed anywhere in the process where the determination of turbidity is critical to the quality of the beverage.

Benefits

  • Cost saving
    - optimization of the beverage output volume of a production plant
    - no maintenance - two in one measurements for different product types
  • Accurate process control
    - quick response time enabling improvements in plant efficiency

FUNCTIONAL DESCRIPTIOn

The In-line Turbidity Meter can be installed anywhere in the process where the determination of turbidity is critical to the quality of the beverage. The turbidity sensor is constructed in accordance with the CE hygienic directive and EHEDG design recommendations. It is easily mounted in a Varivent® process connection and executed as a smart sensor, ready to use, calibrated in a range of 0 to 20 EBC.

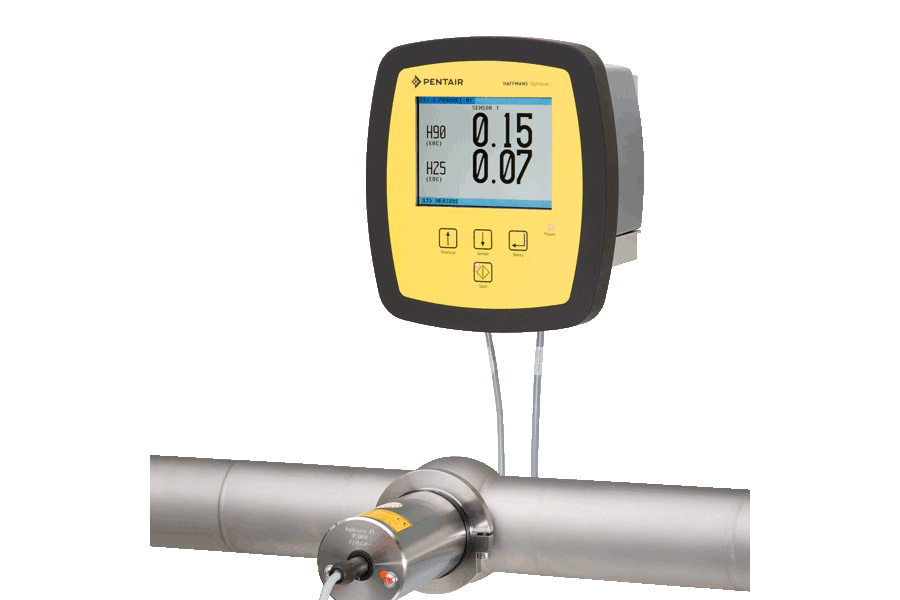

The OptHaze-i is designed for simultaneous measurement of 90º and 25º turbidity. The user-friendly control unit can be supplied in either field or panel mounted versions and up to two turbidity sensors can be connected to each control unit.



INTERFACE MODULE CONNECT+

Protocol Converter Connect+ In-line - Haffmans - Image 1
UPGRADE TO THE NEWEST COMMUNICATION STANDARDS WITH PENTAIR HAFFMANS CONNECT+
Digital technology is racing forward: advanced sensors, the internet of things, and new connectivity standards help us to work smarter and easier. For global beer and carbonated soft drink producers that need to integrate the measuring data into their PLC-System, Pentair Haffmans interface module Connect+ provides the modern digital communication standards Profinet and EtherNet/IP.

Your Benefits:

  • Support of all standard protocols for a faster integration -> PROFIBUS DP, PROFINET, EtherNet/IP
  • Backwards compatible, existing instruments can be connected as well
  • Hardware is IoT ready

Pentair Haffmans Connect+ leads to savings on administrative work and to a faster and flexible anticipation of challenges in the operation. With that in mind, the quality of your beer will definitely benefit – and that’s what we all appreciate, right?


Fields OF APPLICATION

In-line, at critical locations in the production line where the determination of turbidity of beverages is required.
