PRODUCT INFORMATION
The Haffmans Keg Monitor, type KEG 2.0 travels with the other kegs through the keg washer and evaluates its performance. A windows-based PC-program processes the data, providing you a complete picture of the keg washing process.
Benefits
- Perfect process control
- Independent medium to control the performance of the keg washer
- New and improved software for faster and better process insights
- Cost saving
- Optimizing energy consumption; the existence of superheated steam can be eliminated
- Fast charging
- Wireless charging in less than 10 minutes generates 18+ hours of operating time
- Low maintenance
- Easy calibration
- Easy calibration
- Easy handling
- Wireless data transfer with Bluetooth
- System can be customized to your desired keg size
- Different keg sizes available
How the Pentair Haffmans Keg Monitor 2.0 works
Learn how our Pentair Haffmans Keg Monitor 2.0 works.
-
FUNCTIONAL DESCRIPTION
-

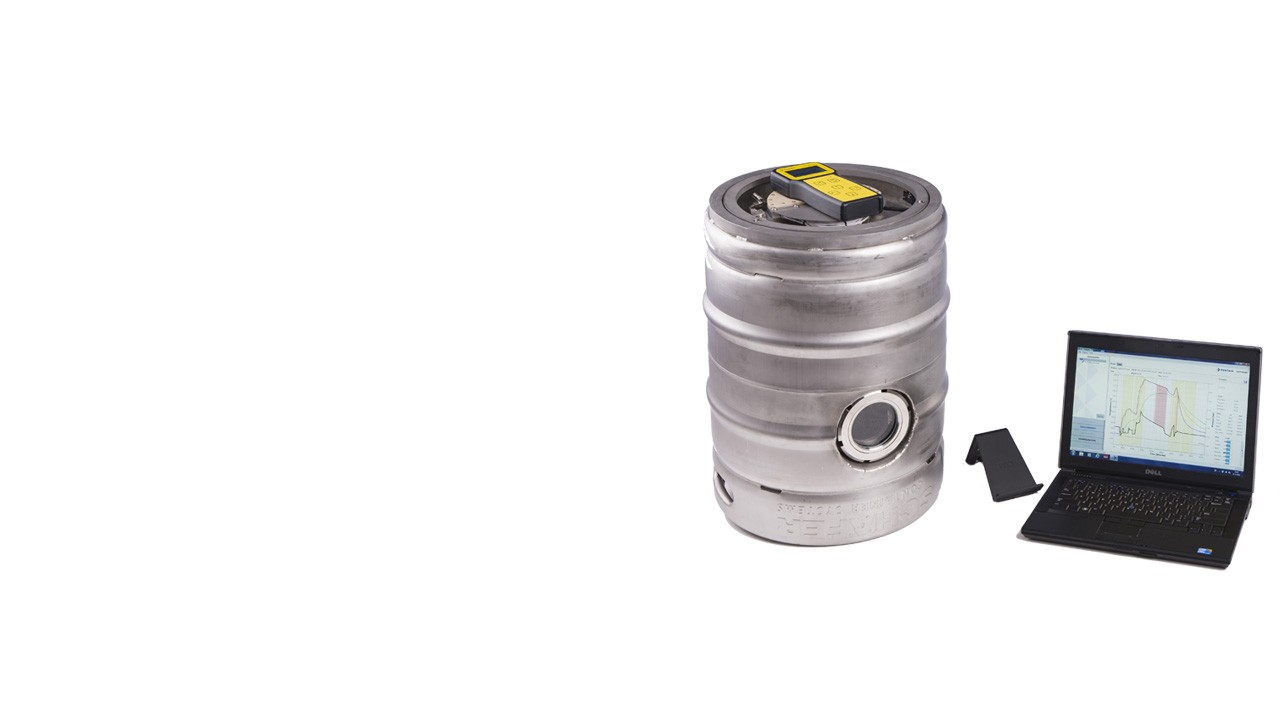

The Haffmans Keg Monitor, type KEG 2.0, consists of a specially prepared keg with a handy or charger and a dock station. The Keg Monitor travels among the other kegs through the keg washer and monitors its performance. It measures the temperature of the incoming product, the temperature of the product leaving the keg, the temperature of the keg wall, and the pressure inside the keg. In addition, the data logger continuously registers the position of the keg in the cleaning process.
After the process is finished, the handy is put onto the keg and the data is wirelessly transferred. Subsequently, the handy is placed on the dock and the stored data can be directly printed or uploaded to a PC. The software processes the measured values and further checks whether the steam was superheated, which reduces the sterilization effect. All results are displayed in a tabular and graphical format, which can be printed and/or stored.
CONFIGURATIONS
Two configurations of the HAFFMANS KEG MONITOR, TYPE KEG 2.0 are available.
STANDARD
- Easy configuration and data transferring with Handy
- No distance limitations between KEG Logger and PC
ECONOMY
- Configuration from PC and data transferring with Charger
- Maximum 10 meter distance between KEG Logger and PC
- Cost-efficient solution especially for small and craft operations
-
APPLICATIONS
-
Keg Washer
DOWNLOADS
| Titel | Download PDF | |
| Product leaflet |
Haffmans Keg Monitor - KEG 2.0 |
Download |
| Product leaflet |
Haffmans Keg Monitor - KEG 2.0 (German) |
Download |
| Product leaflet |
Haffmans Keg Monitor - KEG - Retrofit Upgrade Package |
Download |
| Case study |
Grolsch Brewery |
Download |
| Product Overview Brochure |
Haffmans Quality Control Equipment |
Download |
| Technical documentation | Looking for operating instructions, installation manual, spare part list etc.? | Please, send us your request |
