Product Information

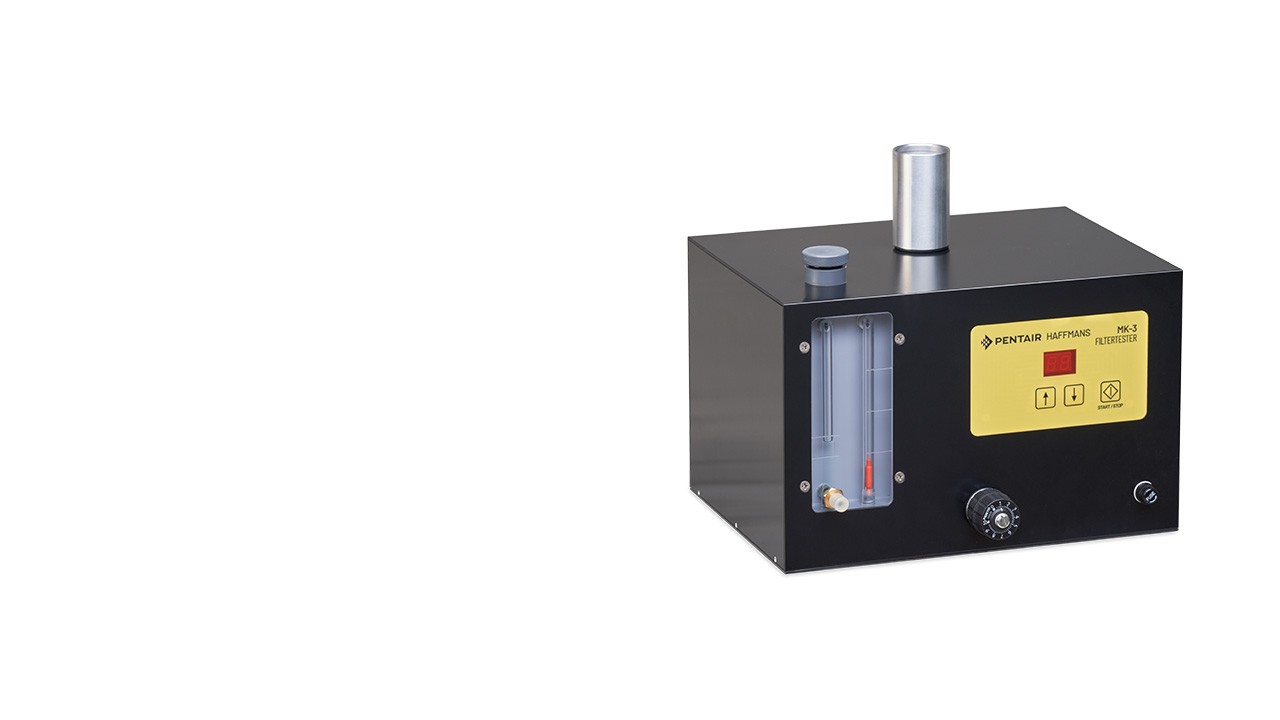

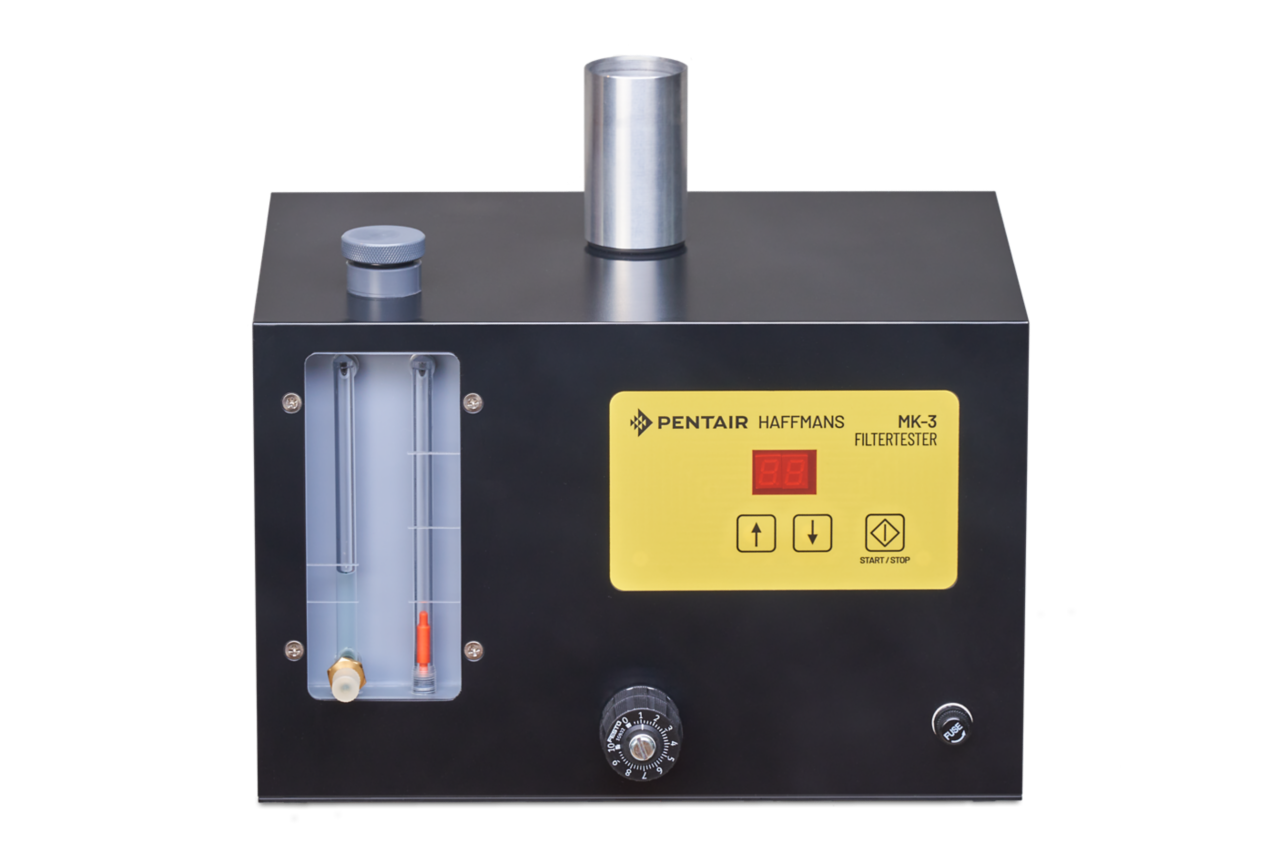

The Pentair Haffmans MK-3 CPM® FilterTester provides easy testing of CPM sterile filter elements as well as most conventional filter cartridges. When used with CPM sterile filters, the MK-3 allows for in-line testing. Effective sterile filtration, to prevent contamination, spoilage and product loss, is an essential part of your production process.
Benefits
- Cost saving
- On labor - the filter test, including all preparations, can be performed in less than 2 minutes
- On utilities - no water or compressed air from an external source required
- On resources – the test does not damage the filter element
- Easy to perform test method, no special knowledge or skills required
- High security
- Clear detection of filter element defects (Go/No Go)
- Proven test method
- In-line testing ability
- Compact solution – you do not need a multi-part test set-up, just the FilterTester
-
FUNCTIONAL DESCRIPTION
-
The test method employed by the MK-3 is known as the “Go/No Go” Test and provides very fast and accurate results. To simulate microorganisms, a microfog or series of smoke-like particles is generated within the FilterTester from non-toxic saturated synthetic hydrocarbons. These hydrocarbons form micro drops of 0.2 to 2.5 μm.
This fog is then applied under pressure from an integrated compressor to the filter being tested. The fine fog particles quickly penetrate even the smallest leaks in the filter providing immediate visual identification.
A filter test can be performed in less than a minute. The procedure is simple and requires no special knowledge or skills.
A digital timer is integraed in the FilterTester. After adjusting the time and operating the start/stop button the creation of the microfog starts. The integrated pump starts automatically with a delay of 5 seconds and leads the microfog under low pressure to the internal part of the filter element being tested.
After the filter test, the micro drops evaporate without leaving any trace in the filter element.
Sterilization of the filter element after the filter test is recommended.
-
FIELDS OF APPLICATION
-
In all industries, suitable for all CPM sterile filters and most conventional sterile filter cartridges.
Downloads
| Title | Download PDF | |
| Product leaflet |
Haffmans Filter Tester CPM MK-3 | Download |
| Product leaflet | Haffmans Filter Tester CPM MK-3 (German) | Download |
| Product leaflet | Haffmans Filter Tester CPM MK-2 (French) | Download |
| Product leaflet | Haffmans Filter Tester CPM MK-2 (Portuguese) | Download |
| Product leaflet | Haffmans Filter Tester CPM MK-2 (Russian) | Download |
| Case study | Haffmans Filter Tester CPM MK-2 - Bitburger | Download |
| Case study | Haffmans Filter Tester CPM MK-2 - Bitburger (German) | Download |
| Brochure | Haffmans CPM Filters | Download |
| Case study | Haffmans CPM Filter System for Soft Drink Plant | Download |
| Technical documentation | Looking for operating instructions, installation manual, spare part list etc.? | Please, send us your request |
