PRODUCT INFORMATION
The Haffmans Sterile Filters CPM - PSF feature a revolutionary design that provides advantages over conventional filter cartridges for food, beverage, and other process applications. The innovative filter design makes 100 percent reverse flow filtration and in-line steam sterilization possible.
Benefits
- Unique and flexible modular filter design
- Robust stainless steel construction, no damage or aging of filter element
- Only the filter membrane is replaced as a wear part
- Easy up- and downscaling of filter capacity
- High temperature resistance of filter membranes that can be sterilized up to 284 °F (140 °C)
- High filter capacities possible
- Filter elements can be retrofitted within conventional filter housings
- CPM standard filter housings are equipped with condensate release connections for both the inlet and outlet that can also be used for filter element testing
- 100 percent reverse flow filtration and sterilization possible
-
FUNCTIONAL DESCRIPTION
-

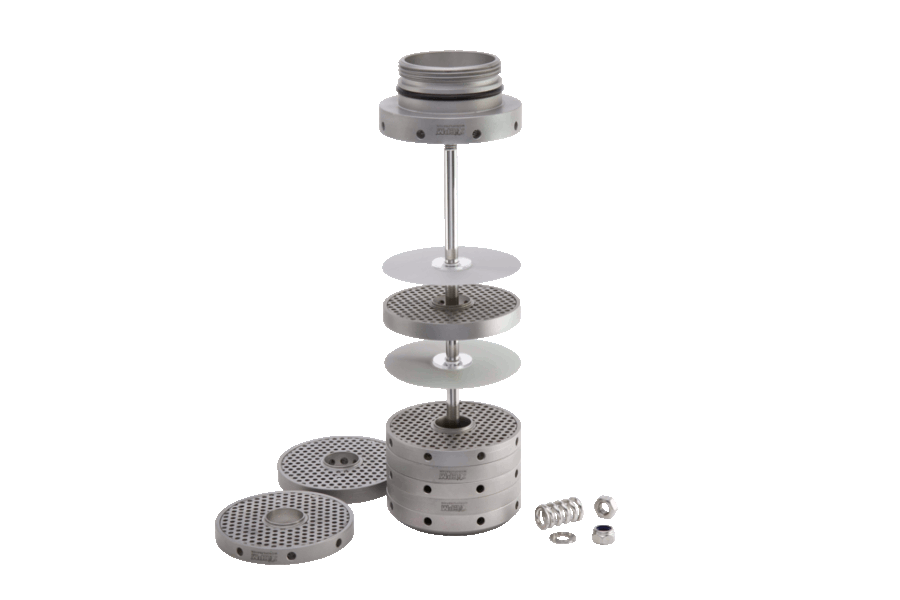

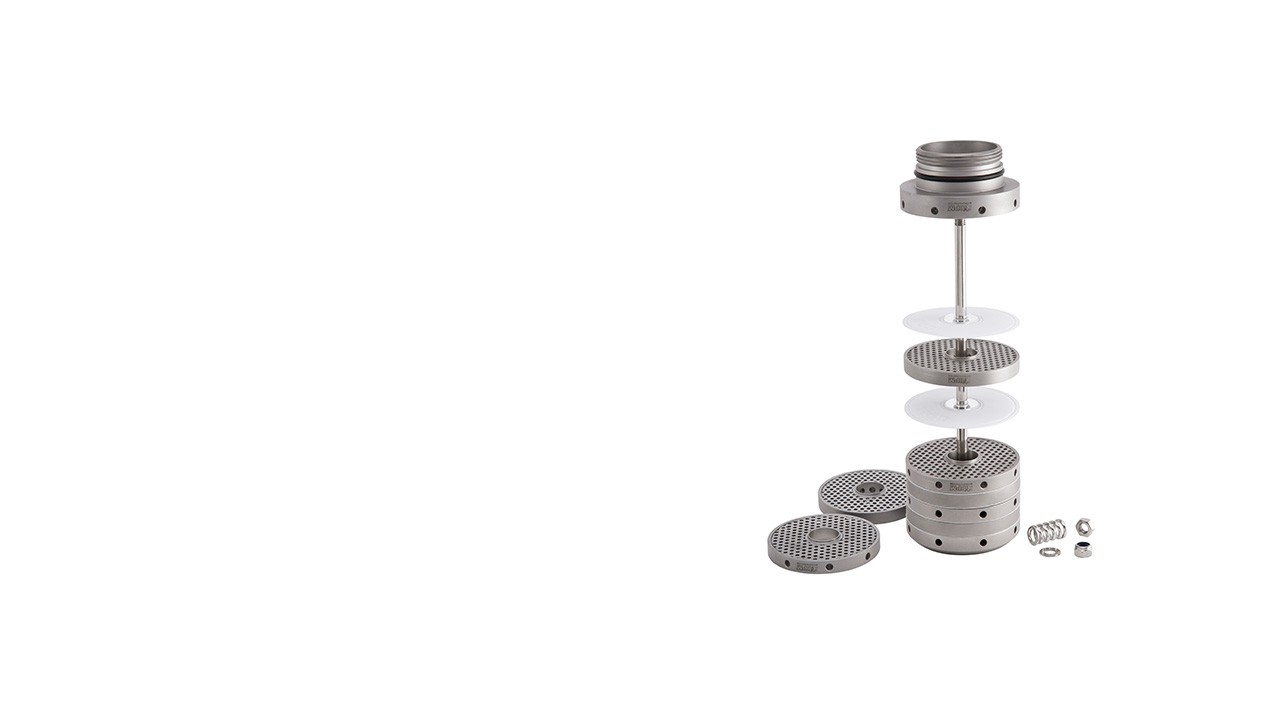

The Haffmans Sterile Filter CPM - PSF is a validated sterile filter for 100 percent contamination-free filtration of air, compressed air, carbon dioxide (CO2), and other gases. Equipped with the patented, flexible Ecofilter® element, consisting of filter membranes in between segmented stainless steel disks, the PSF offers the highest filtration efficiency and security.
The PSF’s filter membranes, made of high-quality PTFE, are permanently hydrophobic and reject bacteria transfer and growth. The filter membranes have an absolute retention rate of 0.2 μm and an extremely high, 95 percent, pore distribution. This allows high flow capacities against very little pressure loss.
-
FIELDS OF APPLICATION
-
All industries, typically used in the brewing and beverage, food and dairy industries.
